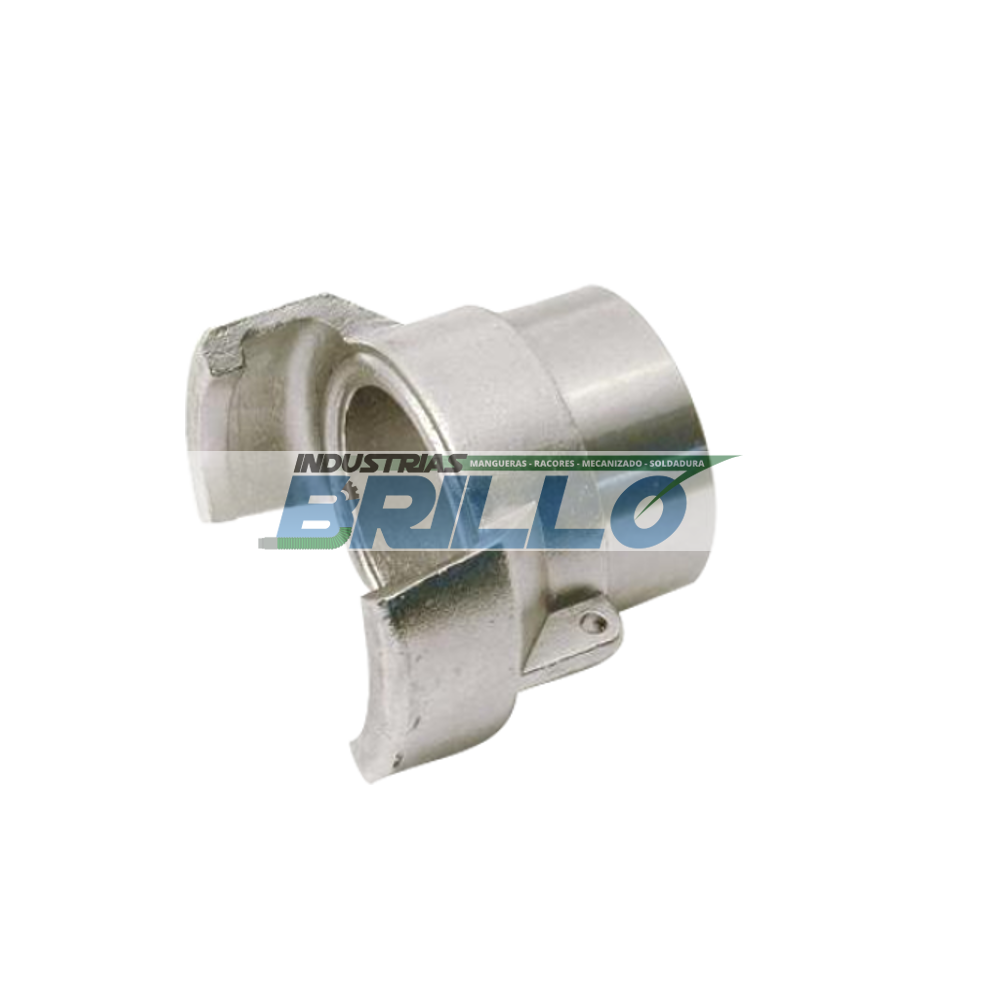

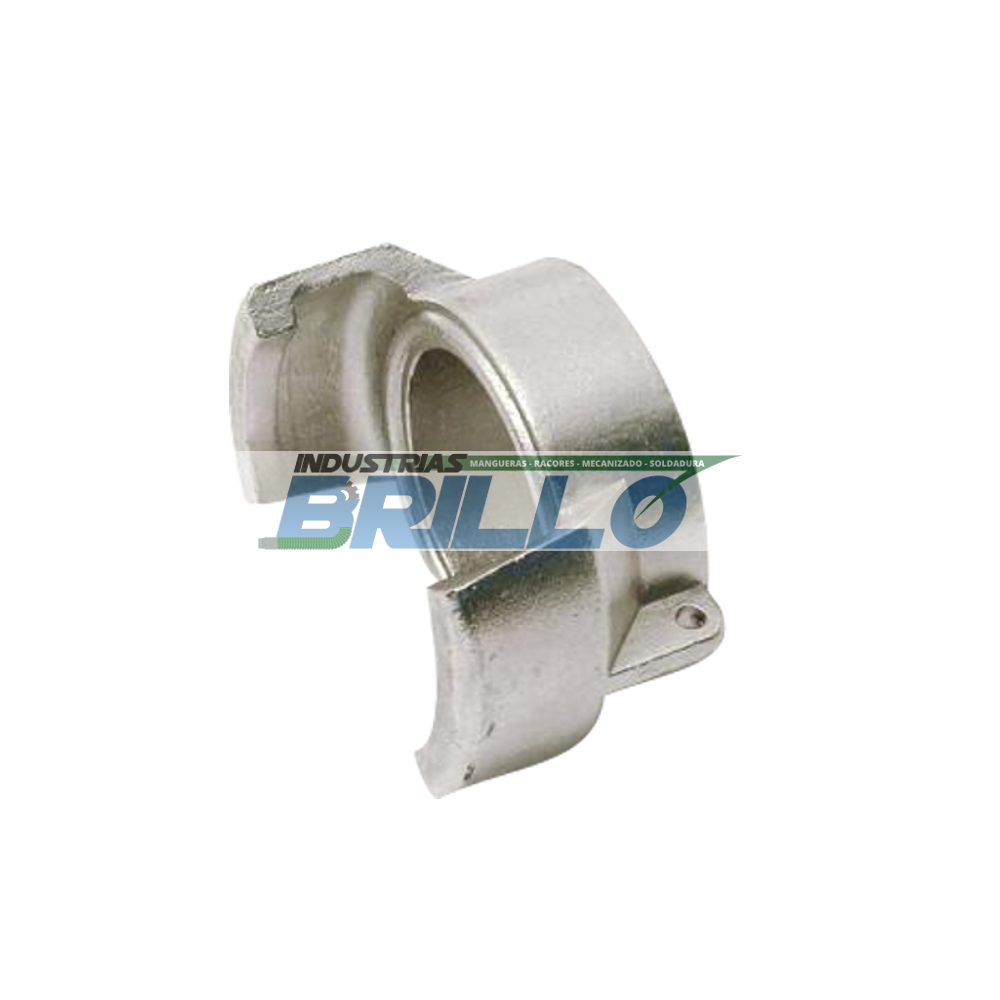

Guillemin para soldar sin cierre BW / SW
Guillemin para soldar sin cierre BW / SW
Racor muy extendido en las industrias y en transporte de productos petrolíferos, químicos, cementos e incluso industria alimentaria.
Descripción del producto
Tabla de medidas y características
Guillemin para soldar sin cierre BW/SW |
||||||
Código |
Ø Acople |
Ø Soldar (en mm.) |
Inoxidable 316L |
|||
mm. |
Pulg. |
BW |
SW |
BW |
SW |
|
RAC-0000GUI*W020X |
20 |
5/8” |
26,7 |
27 |
✆ |
✆ |
RAC-0000GUI*W025X |
25 |
1” |
33,4 |
33,8 |
✆ |
✆ |
RAC-0000GUI*W032X |
32 |
1-1/4” |
42,2 |
42,6 |
✆ |
✆ |
RAC-0000GUI*W040X |
40 |
1-5/8” |
48,3 |
48,8 |
✔ |
✆ |
RAC-0000GUI*W050X |
50 |
2” |
60,3 |
61 |
✔ |
✔ |
RAC-0000GUI*W065X |
65 |
2-9/16” |
73 |
73,9 |
✔ |
✔ |
RAC-0000GUI*W070X |
65 |
2-9/16” |
76 |
– |
✔ |
✘ |
RAC-0000GUI*W080X |
80 |
3-1/8” |
88,9 |
89,8 |
✔ |
✔ |
RAC-0000GUI*W100X |
100 |
4” |
114,3 |
115,4 |
✔ |
✔ |
Sustituir “*” por “B” en el caso del racor BW y por “S” en el caso del “SW”
